overview

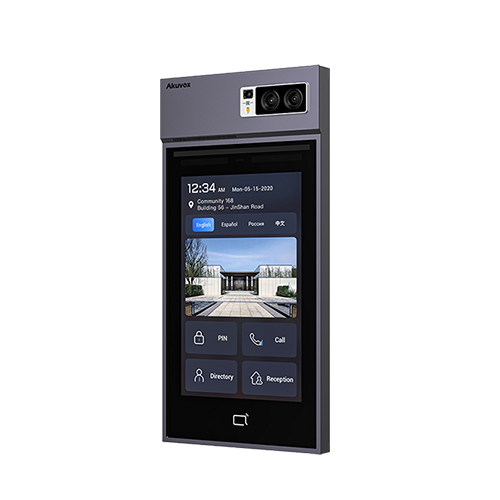

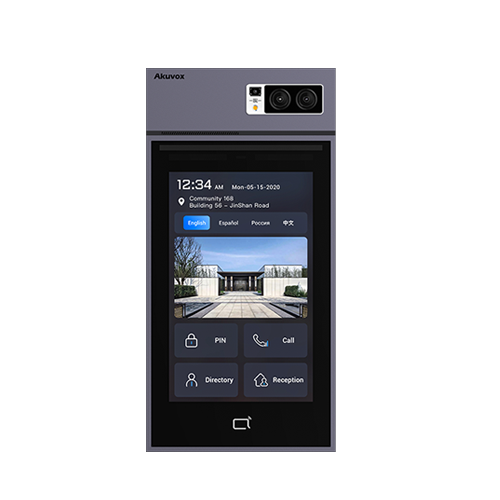

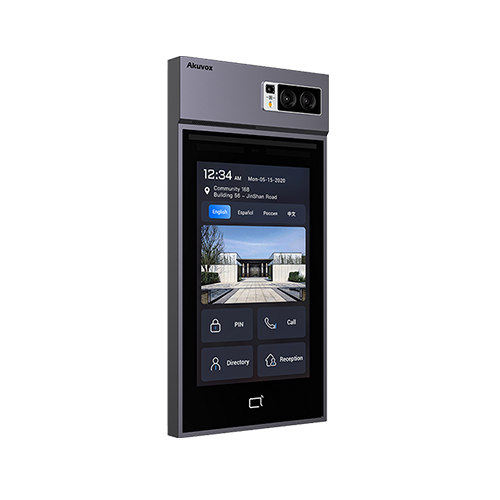

Akuvox S539 video door phone, featuring a terraced surface, a multi-functional camera module, and over 15 access control methods, is innovatively built in with an avatar. More convenient, more secure, and more interactive. The Metaverse-Intercom era is coming with S539.

specifications

• Physical & Power :Front Panel: AluminumDisplay: 10 Inch IPS LCDMain Camera: 5M pixels, with starlightLight Sensor: SupportMotion Sensor: SupportToF Sensor: SupportWiegand Port: SupportRS485 Port: SupportLine Out: SupportRF Card Reader: 13.56MHz & 125kHzRelays Out: 3Inputs: 3Microphone: 2 Speaker: 2Reset Button: 1BLE: SupportEthernet port: 1xRJ45, 10/100Mbps adaptiveIEEE 802.3at PoE+Power: DC12V / 3A or DC24V / 1.5AIP & IK Level: IP66 & IK08Installation: Flush-mounted & Wall-mountedFlush-mounted DIM:
• Audio :Sensor: 1/2.7”, CMOS for main cameraPixels: CIF, QCIF, VGA, 4CIF, 720p, 1080pVideo codec: H.264Video technology: HDRVideo resolution: up to 1920x1080pMax. image transfer rate: 1080p – 30fpsViewing angle: 120°(H) / 72°(V)Compatible to 3rd-Party-Video components, e.g. NVRs
• Networking & Protocol : Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
• Door Entry Feature :  Android OS for any 3rd party software or customizationRelays controlled individually by DTMF tonesMulti-way Unlock: Face, Card, PIN, BLE & QR codeCamera permanently operationalAuto-night mode with LED illuminationWhite balance: autoMinimum illumination: 0.1LUX
• Deployment & Maintenance : Auto-ProvisioningWeb management portalWeb-based packet dumpConfiguration backup / restoreEntry log exportAccess table export / importFirmware upgradeSystem logs (include door access logs)
