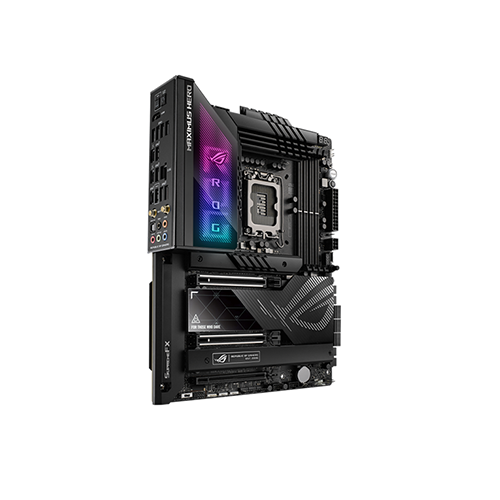

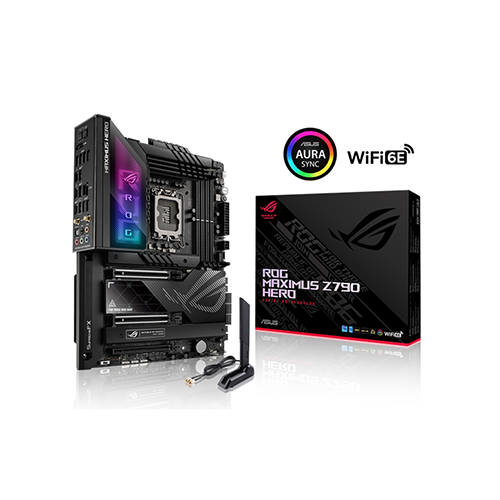

Specifications

• Brand : Asus
• CPU : Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors (Refer to www.asus.com for CPU support list.); Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.)
• Chipset ; Intel® Z790 Chipset
• Ethernet : 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
• USB :Rear USB (Total 12 ports):- 2 x Thunderbolt™ 4 ports (2 x USB Type-C®), 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A). Front USB (Total 9 ports):- 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+),
• Memory Slots Support : 4 x DIMM, Max. 128GB, DDR5 7800+, (OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), (Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list./ Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function)
• Internal I/O Connectors :Fan and Cooling related:- 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 4 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header; 1 x 2-pin Water In header; 1 x 2-pin Water Out header; 1 x 3-pin Water Flow header. Power related:- 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connector; 1 x 6-pin PCIe Power connector. Storage related:- 3 x M.2 slots (Key M), 6 x SATA 6Gb/s ports. USB:- 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®);
• Expansion Slots :Intel® 13th & 12th Gen Processors (Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).). 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) -(When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
• Sound ; ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082:- – Impedance sense for front and rear headphone outputs; – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input; – Supports up to 32-Bit/384 kHz playback”.
• Form Factor : ATX Form Factor. 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Warranty : 2 Year Warranty
