overview

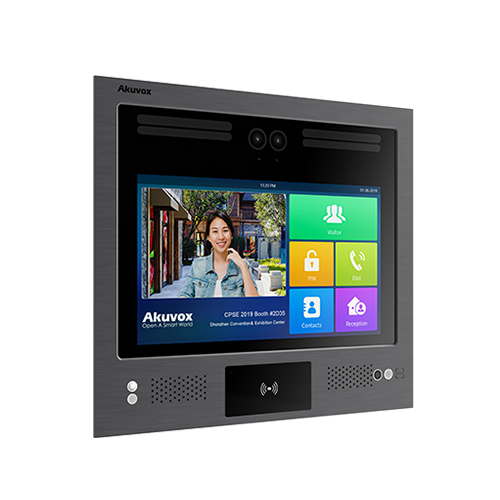

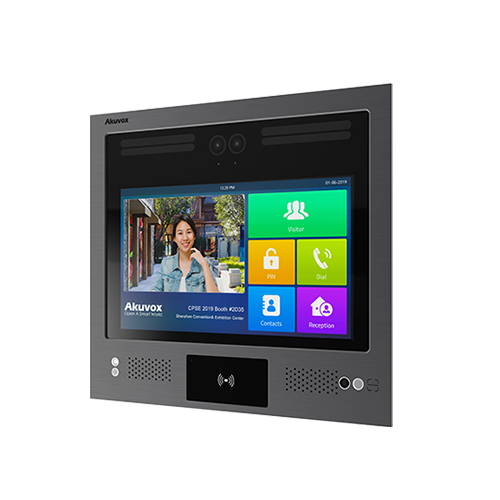

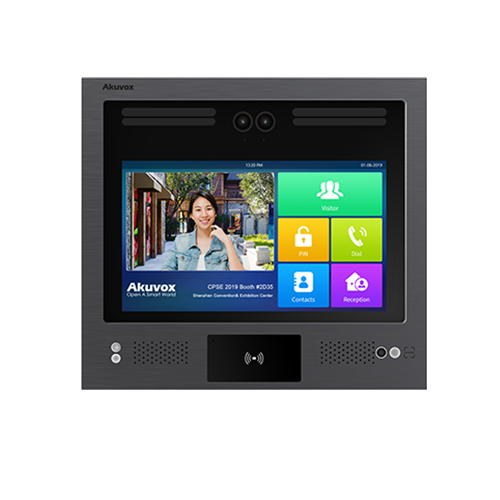

Akuvox X916 SIP video doorphone is one of the most powerful models in the industry, which incorporates the latest technologies including starlight camera, HDR, Android 9.0, and facial recognition. It is typically used in high-end apartment buildings and office buildings.

specifications

Physical & Power :Camera: 2M pixels, automatic lightingDisplay: 2.8 InchNumeric keypad with extra buttonsLight sensor: SupportMotion sensor: SupportWiegand port: SupportRS485 port: SupportLine out: SupportBLE: SupportRF card reader: 13.56MHz & 125kHz, NFCRelays out: 2Inputs: 4Analog audio output: SupportMicrophone: 1Speaker: 1TF card slot: 1Reset: Support

• At a Glance

  Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;Intuitive interface with color touch display for superior resident and visitor usability;13”fully-color touch display provides ultra-wide viewing angles;Presents information and user navigation options unique to your business;Supports SIP to provide reliable two-way voice & one-way video communication;Complies with ONVIF standard for easy integration with any network surveillance system;

• physical & power : Front Panel: 316 grade stainless steelRAM / ROM: 2GB / 16GBDisplay: 13 Inch IPS LCDMain Camera: 2M pixels, with starlightAuxiliary Camera 1: 2M pixelsAuxiliary Camera 2: 0.3M pixelsLight sensor: SupportInfrared sensor: SupportWiegand port: SupportRS485 port: SupportRF card reader: 13.56MHz & 125kHzRelays out: 4Inputs: 4
• Audio:SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: In-band, out-of-band DTMF (RFC2833), SIP InfoEcho CancellationVoice Activation DetectionComfort Noise Generator
• Video: Sensor: 1/2.8”, CMOS for main cameraPixels: CIF, QCIF, VGA, 4CIF, 720p, 1080pVideo codec: H.264Video technology: HDRVideo resolution: up to 1920x1080pMax. image transfer rate: 1080p – 30fpsViewing angle: 115°(H) / 63°(V)
• Door Entry Feature :Relays controlled individually by DTMF tonesCamera permanently operationalAuto-night mode with LED illuminationWhite balance: autoMinimum illumination: 0.1LUX

Networking & Protocol : Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
