overview

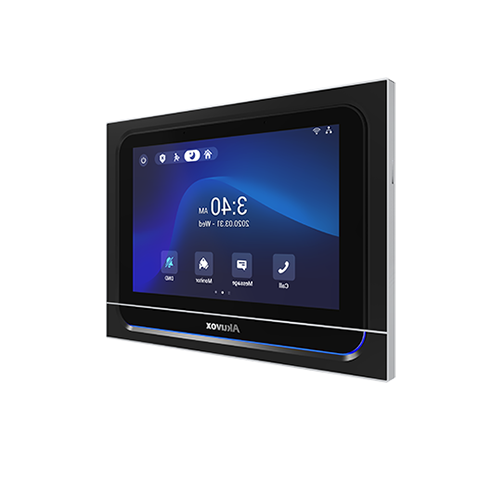

The Akuvox X933W multifunctional communicator, with an Android 9.0 operating system, provides ultimate audio and video communication with door phones via SIP 2.0 protocol.It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.

•  physical & power:Front panel: PlasticRAM / ROM: 2GB / 8GBDisplay: 7 Inch IPS LCDScreen: 7 Inch capacitive touch screenWi-Fi: IEEE802.11 b/g/n, @2.4GHzBluetooth: BLE 4.1RS485 port: SupportRelays out: 2Bell in: 1I/O: 8Microphone: Dual microphone,-26dBSpeaker: Dual speakers, 4Ω / 3WEthernet ports: 1xRJ45, 10/100Mbps adaptive802.3af Power-over-Ethernet12V DC connector (if not using PoE)Tamper resistant: SupportInstallation: Wall-mounted
• Touch Screen Display:Display Mode: Normally black, TransmissiveLCD Size: 7inch (Diagonal)Aspect Ratio: 16:10Resolution: 1280x800Contrast ratio: 900:1Luminance: 350 cd/m2Viewing Angle: 89° Left, 89° Right,89° Upper, 89° LowerTouch Screen: Projected capacitive
• Audio & video:SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: In-band, out-of-band DTMF (RFC2833), SIP InfoEcho CancellationVoice Activation DetectionComfort Noise GeneratorAutomatic Gain ControlVideo Streaming formats: H.263 & H.264
• Networking:Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
