overview

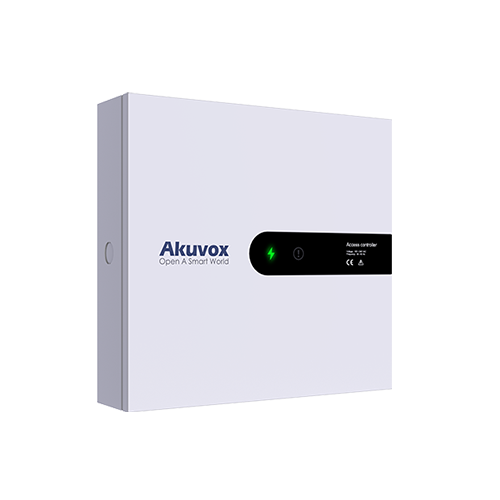

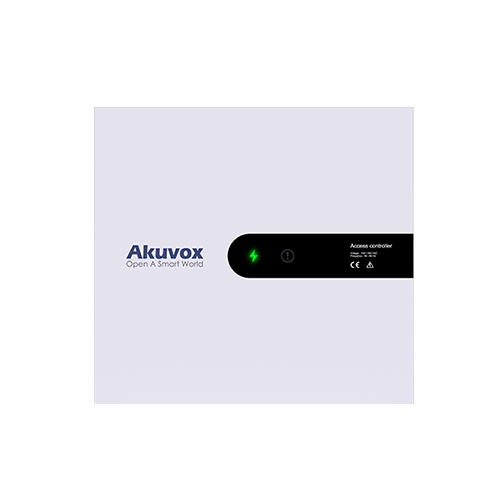

Akuvox A094 is an intelligent access controller housed in a stylish SGCC cabinet. It provides the advantages of access control of four doors over a centralized system. Supporting standalone and networked deployment, it can be applied to projects of various scales.

Specifications

• Physical & Power :Front panel: SGCCPower input: 100~240VAC/1.5A 50/60HzWiegand port: 4Relays out: 8Input: 13RS485 port: 4Power output: 4Ethernet port: RJ45, 10/100 Mbps, adaptiveTamper proof alarm: SupportStatus lights: SupportBackup battery: SupportInstallation: Wall-mountedDimension: 365 x 340 x 85 (mm)Working Humidity: 10%~90%Working Temperature: -10℃ ~ +55℃Storage Temperature: -20℃ ~ +70℃
• Door Entry Feature : 50,000 user storageAnti-pass back functionMulti-door interlock functionAccess table export & importAccess level managementDoor access logs query and export
• Card Readers ; Support Wiegand 26/34/58 readersSupport RS485 readers
• Networking: Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, TCP, UDP, TLS, ICMP, DHCP, ARP
• Deployment & Maintenance: Auto-ProvisioningWeb management portalWeb-based packet dumpConfiguration backup / restoreFirmware upgradeSystem logs
