overview

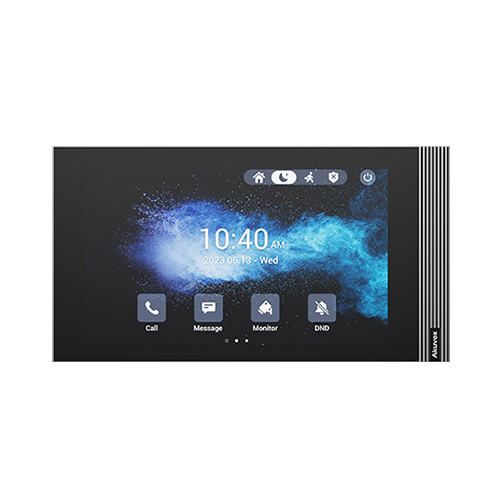

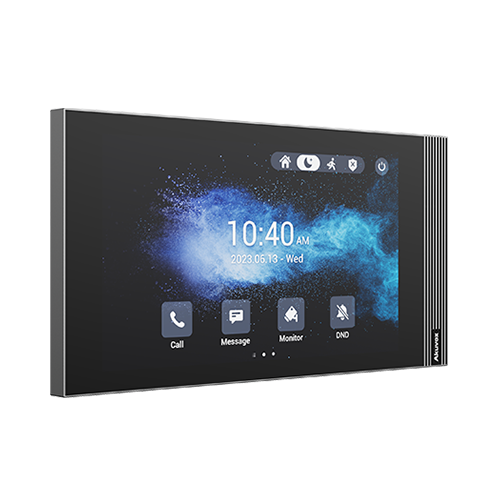

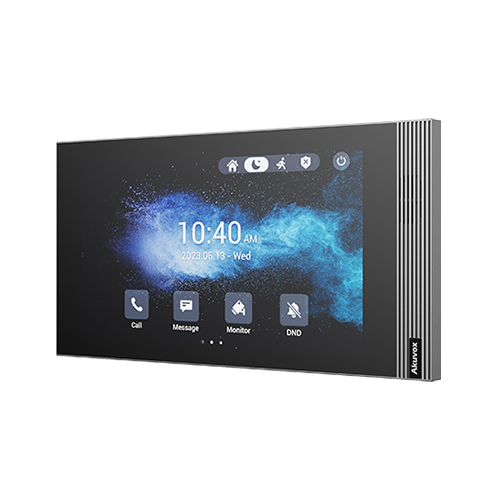

Akuvox S562 is a 7″ Linux indoor monitor featuring a stack of smart intercom features. With a compact body and stylish design, it is perfect for limited space and blends well into modern homes.

•  physical & power:Front panel: PlasticRAM / ROM: 128MB / 128MBDisplay: 7 Inch TFT LCD 1024×600 resolutionScreen: 7 Inch capacitive touch screenRS485 port: SupportRelay out: 1Bell in: 1I/O: 8Microphone: -42dBSpeaker: 4Ω / 2WEthernet ports: 2xRJ45, 10/100Mbps adaptive802.3af Power-over-Ethernet12V DC connector (if not using PoE)Installation: Wall-mounted & DesktopDimension: 216.4×118.8×21.7mmWorking Humidity: 10~90%Working Temperature: -10°C ~ +45°CStorage Temperature: -20°C ~ +70°C
• Touch Screen Display ;Display Mode: Normally white, TransmissiveLCD Size: 7inch (Diagonal)Resolution: 1024x600Contrast ratio: 600:1Luminance: 250 cd/m²Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° LowerTouch Screen: Projected capacitive
• Audio:SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: Out-of-band DTMF (RFC2833), SIP InfoEcho Cancellation
• Networking:Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
