overview

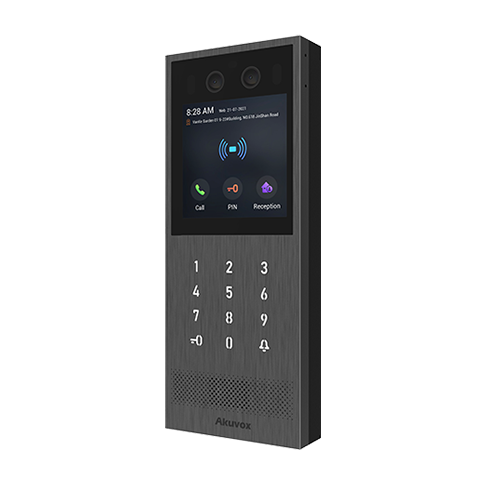

Offering top-of-the-line features, Akuvox X912 is targeted at high-end residential and commercial projects. With a compact size, it is perfect for buildings with limited installation space.

specifications

Physical & Power :Camera: Front panel: Stainless steelDisplay: 4 Inch, color TFT LCD, touchableCamera: 2M pixelsNumeric keypadGesture detection sensor: SupportWiegand port: SupportRS485 port: SupportRF card reader: 13.56MHz & 125kHz, NFCRelays out: 2Inputs: 3BLE：SupportLine out: 1Microphone: -42dBSpeaker: 8Ω / 2WPower out: 12V/1A（Max.）

• At a Glance

  Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;Intuitive interface with color touch display for superior resident and visitor usability;13”fully-color touch display provides ultra-wide viewing angles;Presents information and user navigation options unique to your business;Supports SIP to provide reliable two-way voice & one-way video communication;Complies with ONVIF standard for easy integration with any network surveillance system;

• physical & power :Front Panel: 316 grade stainless steelRAM / ROM: 2GB / 16GBDisplay: 8 Inch IPS LCDMain Camera: 2M pixels, with starlightLight Sensor: SupportInfrared Sensor: SupportWiegand Port: SupportRS485 Port: SupportLine Out: SupportRF Card Reader: 13.56MHz & 125kHzRelays Out: 3Inputs: 3Microphone: 2, -42dBSpeaker: 2, 8Ω / 2WReset Button: 1
• Audio: SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: In-band, out-of-band DTMF (RFC2833), SIP InfoEcho CancellationVoice Activation DetectionComfort Noise Generator
• Video: Sensor: Sensor: 1/2.8”, CMOS for main cameraPixels: CIF, QCIF, VGA, 4CIF, 720p, 1080pVideo codec: H.264Video technology: HDRVideo resolution: up to 1920x1080pMax. image transfer rate: 1080p – 30fpsViewing angle: 125°(H) / 65°(V)Compatible to 3rd-Party-Video components, e.g. NVRs
• Door Entry Feature :Relays controlled individually by DTMF tonesMulti-way Unlock: Face, IC/ID Card, PIN and BLECamera permanently operationalWhite balance: autoMinimum illumination: 0.1LUX

Networking & Protocol :Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
