overview

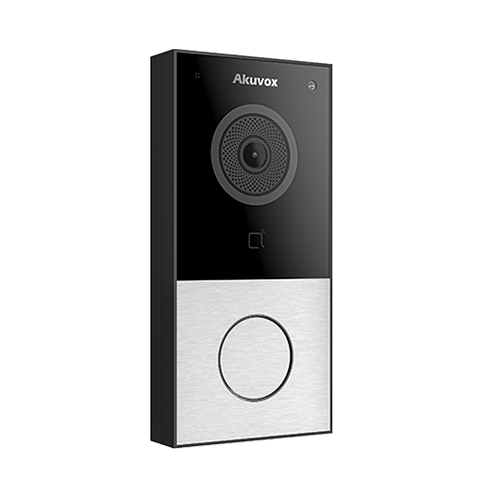

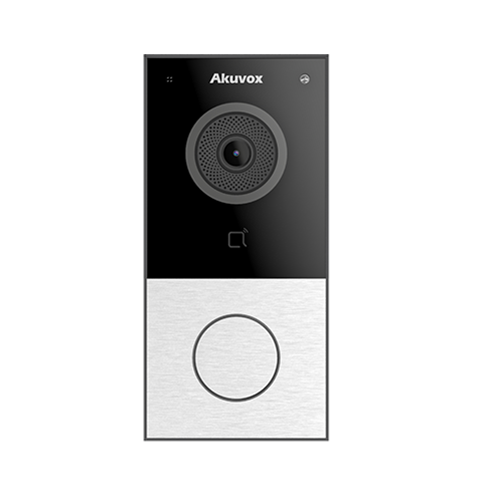

E12 is a single-button SIP video door phone for all types of front doors, be it houses, apartments, or condos. Despite a slim body, it boasts many cutting-edge features, such as mobile access and wireless communication.

specifications

•  physical & power:Body Material: PlasticCamera: 2M pixels, automatic lightingButton: 1 call button with backlightWiegand port: SupportRF card reader: 13.56MHzLight sensor: 1Relays out: 1Inputs: 2Micro SD card slot: 1Microphone: -36dBSpeaker: 8Ω / 1.5WEthernet port: RJ45, 10/100Mbps adaptiveBLE: YesWiFi: IEEE802.11b/g/n, 2.4GHz (E12W Only）
• Audio:SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: In-band, out-of-band DTMF (RFC2833), SIP InfoEcho CancellationVoice Activation DetectionComfort Noise Generator
• Video :Sensor: 1/2.7”, CMOSPixels: CIF, QCIF, VGA, 4CIF, 720p, 1080pVideo codec: H.264, H.265Video resolution: up to 1920x1080pMax. image transfer rate: 1080p – 25fpsViewing angle: 123°(H) / 69°(V)White LEDs for picture lighting during dark hours with internal light sensor
• Door Entry Feature: Relays controlled individually by DTMF tonesCamera permanently operationalAuto-night mode with LED illuminationWhite balance: autoMinimum illumination: 0.1LUX
• Networking & Protocol : Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
