overview

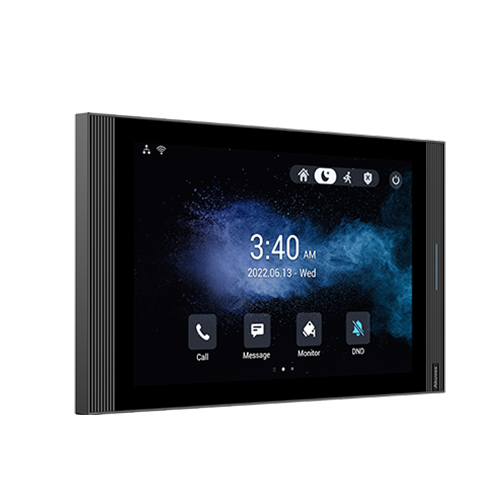

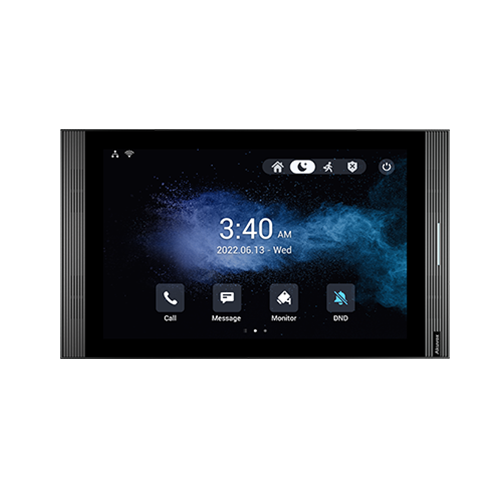

Akuvox S567 10” indoor monitor runs on the industry-leading Android 12 OS, and is equipped with Wi-Fi 6 communication technology. The dual mics and quad speakers together provides superior audio quality. With the minimalist design, S567 blends well into any modern interior design.

•  physical & power:Front panel: PlasticRAM / ROM: 2GB / 8GBDisplay: 10 Inch IPS LCDScreen: 10 Inch capacitive touch screen RS485 Port: SupportRelays Out: 1Bell in: 1Alarm Input：8Microphone: Dual microphones,-26dBSpeaker: Quad speakers, 8Ω / 2WEthernet Ports: 1xRJ45, 10/100Mbps adaptive802.3af Power-over-Ethernet12V DC Connector (if not using PoE)Tamper Resistant: SupportInstallation: Wall-mounted & DesktopDimension: 278x164x22.8 mmWorking Humidity: 10~90%Working Temperature: -10°C ~ +45°CStorage Temperature: -20°C ~ +70°C
• Touch Screen Display ; Display Mode: Normally black, TransmissiveLCD Size: 10inch (Diagonal)Aspect Ratio: 16:10Resolution: 1280x800Contrast ratio: 900:1Luminance: 290 cd/m²Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° LowerTouch Screen: Projected capacitive
• Audio: SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: In-band, out-of-band DTMF (RFC2833), SIP InfoEcho CancellationVoice Activation DetectionComfort Noise GeneratorAutomatic Gain Control
• Networking: Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
