overview

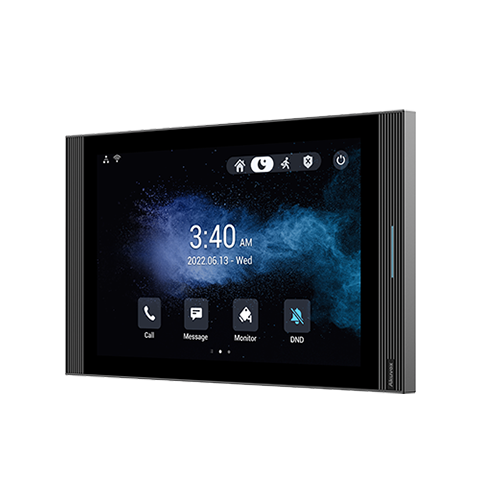

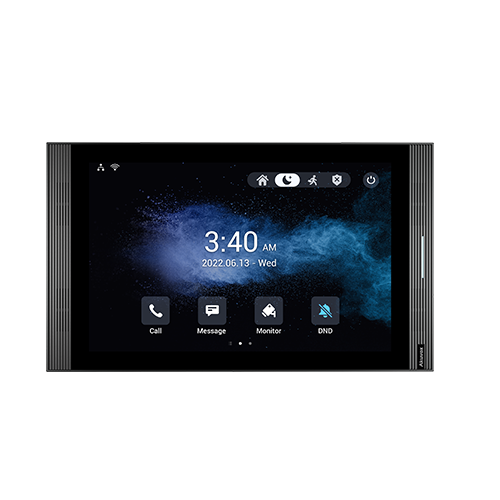

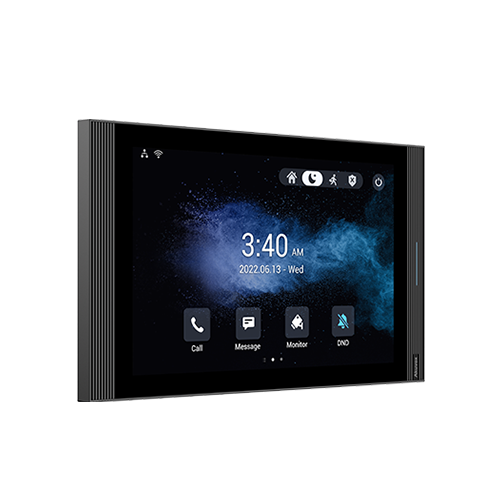

The Akuvox S565 is a 10-inch SIP video indoor monitor that runs on the Linux OS. It features a stylish industrial design and a high-resolution touchscreen display, supporting high-quality video & audio communication and is suitable for mid-range housing markets.

•  physical & power:Microphone: Dual microphonesSpeaker: One speakerEthernet Ports: 2xRJ45,10/100Mbps adaptivePOE: 802.3af Power-over-EthernetPower: 12V DC ConnectorInstallation: Wall-mounted & DesktopDimension: 278x164x22.8 mmWorking Humidity: 10~90%Working Temperature: -10°C ~ +45°CStorage Temperature: -20°C ~ +70°CFront panel: PlasticRAM / ROM: 128MB / 256MBDisplay: 10 Inch IPS LCD 1280×800 resolurion
• Touch Screen Display ;Display Mode: Normally white, TransmissiveLCD Size: 10inch (Diagonal)Resolution: 1280x800Contrast ratio: 900:1Luminance: 350 cd/m²Viewing Angle: 80° Left, 80° Right,80° Upper, 80° LowerTouch Screen: Projected capacitive
• Audio:SIP v1 (RFC2543), SIP v2 (RFC3261)Narrowband audio codec: G.711a, G.711μ, G.729Broadband audio codec: G.722DTMF: Out-of-band DTMF (RFC2833), SIP InfoEcho Cancellation
• Networking: Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARPP
